H200, 90°

H200, 90°

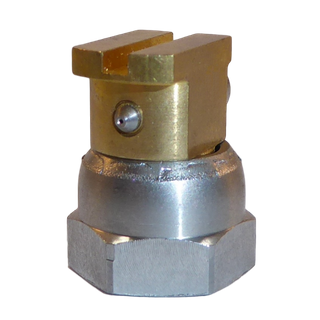

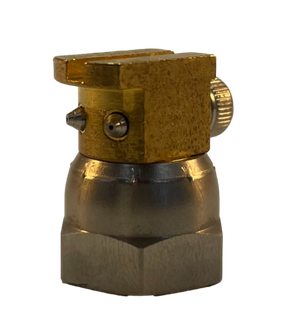

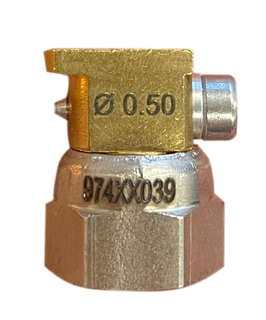

90° H200 nozzles for use on all MS, ME, LP, MX guns

These nozzles will fit into any H-200 style adhesive module. All MS, ME and LP guns can use these nozzles as well as the Nordson H200, Classic Blue, Solid Blue and H440 modules.

Valco Melton nozzles have a 3/8-24 female thread.

The 90-degree nozzles are constructed of a brass nozzle housing, steel retaining nut and stainless steel nozzle insert. The stainless steel inserts are formed from medical grade polished capillary tube which provides the highest quality channel from which the adhesive can be extruded. These nozzles will provide a straight, consistent and accurate adhesive bead.

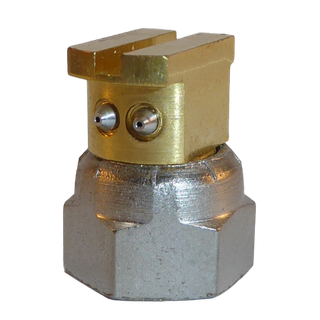

These nozzles are available in single, dual and triple orifice.

Available sizes

Orifice size

mm (in)

1 exit 2 exit; 10° 2 exit; 15° 2 exit; 22° 2exit; 30° 2 exit; 45° 3 exit; 15° 3 exit; 19° 3 exit; 22.5°

Ø 0.20mm (0.008)

974xx001

974xx101

974xx201

974xx301

974xx401









Ø 0.25mm (0.010)

974xx002

974xx102

974xx202

974xx302

974xx402









Ø 0.30mm (0.012)

974xx003

974xx103

974xx203

974xx303

974xx403





974xx503

974xx603

Ø 0.35mm (0.014)

974xx004

974xx104

974xx204

974xx304

974xx404



974xx611

974xx504

974xx604

Ø 0.40mm (0.016)

974xx005

974xx105

974xx205

974xx305

974xx405

974xx414



974xx505

974xx605

Ø 0.45mm (0.018)

974xx006

974xx106

974xx206

974xx306

 974xx406







974xx606

Ø 0.50mm (0.020)

974xx007

974xx107

974xx207

974xx307

974xx407

974xx412

974xx510

974xx507

974xx607

Ø 0.60mm (0.024)

974xx008

974xx108

974xx208

974xx308

974xx408



974xx612

974xx508

974xx608

Ø 0.70mm (0.028)

974xx009

974xx109

974xx209

974xx309

974xx409



974xx614

974xx509

974xx609

Ø 0.75mm (0.030)

974xx010

974xx110

974xx210

974xx310

974xx410







974xx610

Ø 0.80mm (0.032)

974xx011







974xx413









Ø 1.00mm (0.040)

974xx012

974xx111

974xx211

974xx311

974xx411









Ø 1.20mm (0.049)

974xx615

















Ø 1.50mm (0.059)

974xx040
