EMBA Flexo-Folder-Gluers

EMBA Machinery AB

EMBA Machinery AB of Orebro, Sweden, is a leading, worldwide supplier to the corrugated converting industry and has been producing quality machines since 1954.

EMBA machines are renowned for their extremely high productivity and box quality due to very short set up times, accurate print capabilities, high output speeds and outstanding reliability.

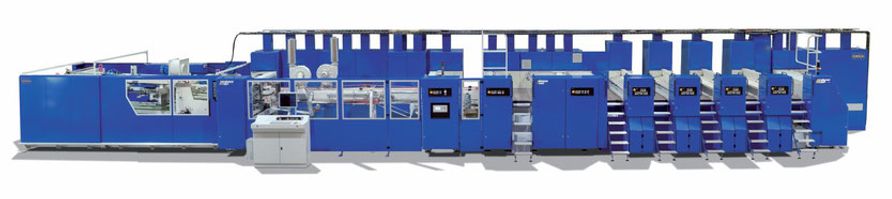

EMBA QS Ultima™

Based on the patented Ultima™ platform, EMBA machines combine outstanding productivity, flexibility and material efficiency. The non-crush technology preserves the geometry and strength of the corrugated profile for optimum box performance and significant savings in material costs. With an advanced digital communication and an exceptionally user-friendly operator interface, the highly automated and servo controlled EMBA QS ULTIMA™ cuts setting time to a minimum. The machine is designed for maximum production output with shortest set-up time.



The world's first non-crush converting machine!

EMBA’s true patented Non-Crush Converting™ technology preserves the geometry and strength of the corrugated profile for optimum box performance and significant savings in material costs.






 EMBA 175 QS Ultima™
EMBA 215 QS Ultima™
EMBA 245 QS Ultima™
EMBA 295 QS Ultima™
Board caliper   1.2-8mm  1.2-8mm  1.2-8mm  1.2-8mm
Machine speed   500 sheets/min (30,000 sheets/hr)  420 sheets/min (25,200 sheets/hr)  330 sheets/min (19,800 sheets/hr) 300 sheets/min (18,000 sheets/hr)
Nominal print cylinder diameter  218.3mm (including printing plates) 258mm (including printing plates) 365mm (including printing plates) 404mm (including printing plates)
Max. printing area   600 x 1750mm (full machine size)  725 x 2100mm (full machine size)  1050 x 2450mm (full machine size) 1150 x 2900mm (full machine size)
Min. sheet size   200 x 400mm  210 x 460mm  280 x 600mm  320 x 700mm
Unfolded sheets   max. width 1550mm  max. width 1600mm  max. width 1850mm  max. width 1850mm
Brochure download    Emba 175 QS Ultima™  EMBA 215 QS Ultima™  EMBA 245 QS Ultima™  EMBA 245 QS Ultima™
