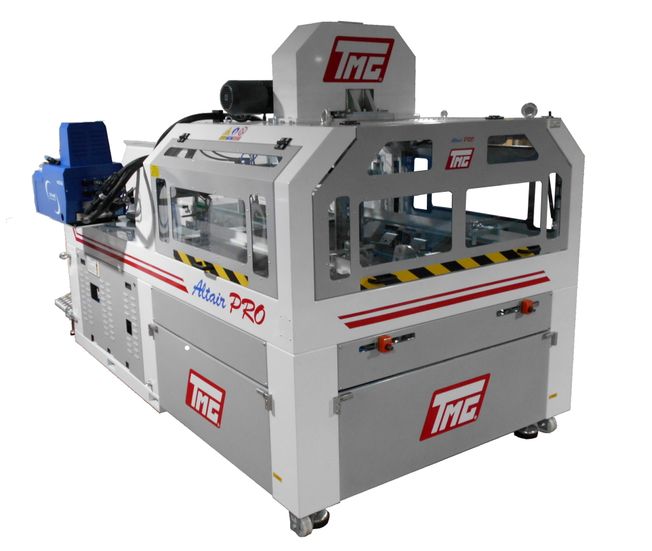

Tray Erector - Tamegar Model "Altair PRO"
Designed and built with the highest performance and innovative control systemsKey Features:
An alternative to the Altair PRO is the Altair Lite - a budget machine for users requiring less production but with the same guarantees and reliability of the PRO machine. |
| MODEL / TECHNICAL CHARACTERISTICS |
ALTAIR PRO | ALTAIR LITE |
| FUNCTIONING | Electro-Mechanic/Pneumatic | Electro-Mechanic/Pneumatic |
| HOT-MELT SYSTEM | Hot-melt unit 6 SLD 14/20kg | Hot-melt unit 6 SLD 8/10kg |
|
PRODUCTION BOX/HOUR (approximate data) |
Maximum of 2700 b/h (depending on the size and model) |
Maximum of 2100 b/h (depending on the size and model) |
| INSTALLED POWER | 12.5kw with air compressor (p.a. 7kw) | 12.5kw with air compressor (p.a. 7kw) |
| ELECTRICAL CONNECTION | 380V (3P+N+T) 50 hZ | 380V (3P+N+T) 50 hZ |
| NET WEIGHT | 1950KG with air compressor | 1930KG with air compressor |
| AIR CONSUMPTION | 550 litres/minute (approximate data) | 650 litres/minute (approximate data) |
| USERS SCREEN | 7" colour TFT screen | 5.5" colour TFT screen |
| INTRODUCTION TRAY | Servo-motor regulation linear guide ways | Servo-motor regulation linear guide ways |
| SUCTION CUP SYSTEM | Pneumatically operated | Pneumatically operated |
| VACUUM SYSTEM | Vacuum pump | Vacuum (Venturi type) |
| PURGE SYSTEM | Electric capacitive purge | Water faucet |
| MAIN ENGINE MOLD | Motor-reductor 2 CV with variable frequency drive | Motor-reductor 2 CV with variable frequency drive |
| MOLD GUIDE | Linear guide ways | Chrome guide & friction cap |
| AIR COMPRESSOR | 7.5 CV / external work / internal work | 7.5 CV / internal work |
| MAIN FRAME / TRAY GUIDE | Folded sheet-welded / stainless steel | Folded sheet-welded / lacquered iron |
| SECURITY SYSTEM | Security system troubleshooting | Security module |
| REMOTE CONNECTION | Optional (installation or 3G modem) | Optional (installation or 3G modem) |
